From Detection to Prevention: How Mighty Lube Conveyor Monitoring Eliminates Guesswork in Automotive Plant

Overview

In automotive paint operations, conveyor reliability is critical. A single undetected failure can disrupt production, impact coating quality, and lead to costly downtime. This Mississippi-based automotive manufacturer operates complex conveyor systems across:
  • Paint Shop Pretreatment & E-Coat.
  • 6” and 4” Overhead (OVH) lines.
  • Floor Booth & Oven 4” inverted chains.
  • Inclines and declines.
For over 20 years, the facility has relied on Mighty Lube Monitoring Systems to maintain uptime and extend conveyor life.

The Challenge

Conveyor failures don’t always start as obvious problems:
  • A trolley may appear slightly bent, but it is actually broken.
  • Chain wear progresses gradually, often unnoticed.
  • Without real-time data, maintenance becomes reactive.
The facility needed more than maintenance; they needed continuous visibility into every link and trolley.

Detection: Identifying a Hidden Failure

Mighty Lube Monitoring identified a potential broken or bent trolley at link #628 on a 4” overhead conveyor.
  • Data tracked the abnormality from 2/19/2026 to 3/18/2026.
  • The issue was consistently flagged, not a one-time alert.
  • Maintenance lead Josh H. used this data to take action.
Rather than waiting for failure, the team scheduled a targeted removal of the affected link.

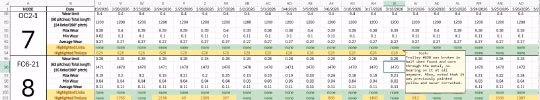

Monitoring Data: Link #628 Flagged

Removed Component: Confirmed Broken Trolley

Verification: Confirming the Failure

Once removed, the trolley revealed the real issue:
  • The component was completely broken through the metal.
  • No bearing remained intact.
What appeared as a “possible bend” in the data was a critical failure in progress. Without monitoring, this would have likely resulted in chain damage, line stoppage, and emergency maintenance.

Prevention: Removing Worn Components Before Failure

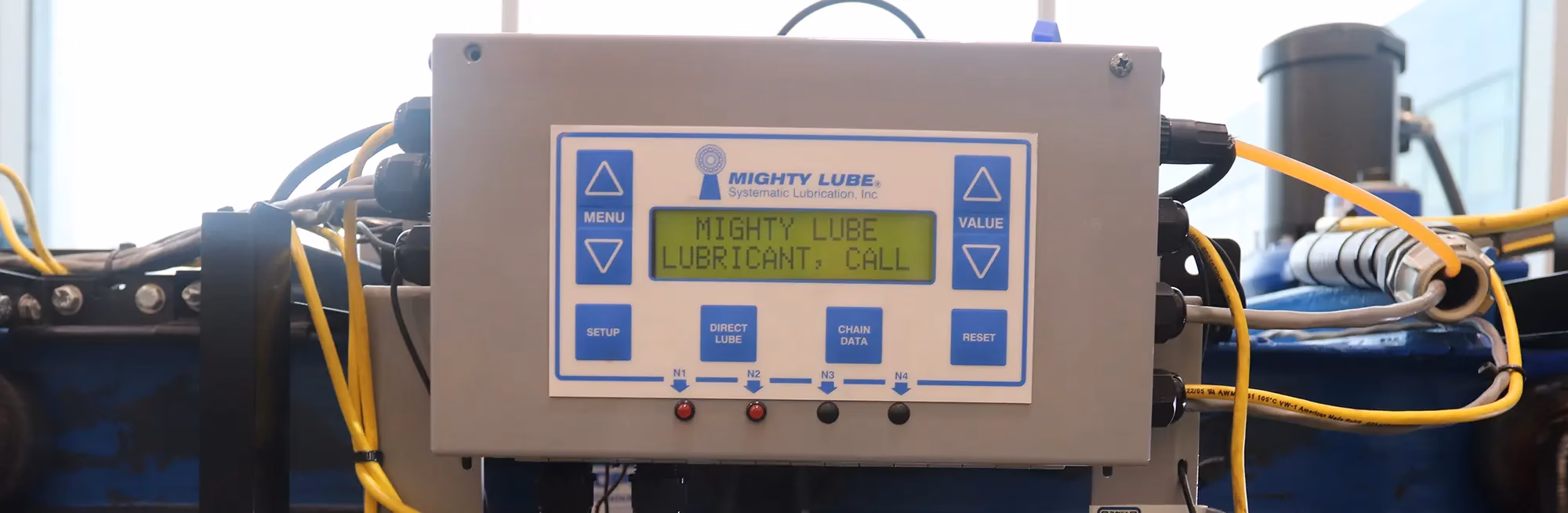

Our Permanent Conveyor Monitoring System doesn’t just detect failures, it prevents them.
  • Excessively worn links were identified early.
  • Components were removed before reaching the failure point.
  • Maintenance remained planned and controlled.
This proactive approach eliminates guesswork and reduces risk.

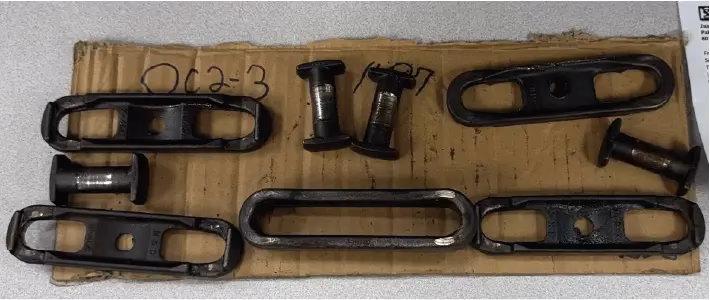

OC2-3 Worn Links Removed

Verification: Confirming the Failure

Escalation: Catching Severe Wear Before Breakdown

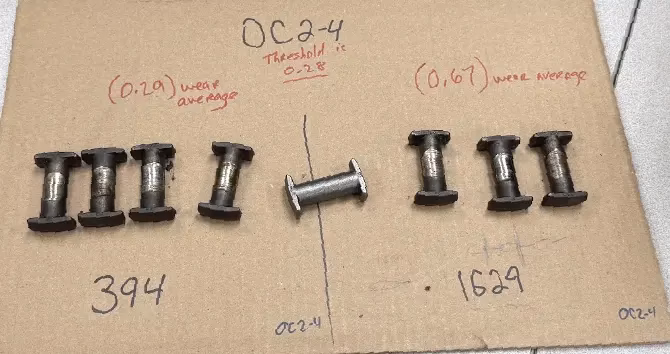

Severe Wear Detection Link #394 & #1629
On another overhead conveyor, monitoring identified extreme wear conditions:
  • Threshold: 0.28 wear limit
  • Chain average: 0.29
  • Link #394 measured 0.67 (over half an inch of wear)
  • Link #1629 was also flagged on the same chain
An automatic email alert was triggered when thresholds were exceeded.
A new pin is shown in the middle for comparison, highlighting just how advanced the wear had become.
This level of detection allows teams to act before catastrophic failure occurs.

A Note on Consistency

“The monitors are valuable tools, but their effectiveness depends on consistent, attentive use. They require daily review, even though they send alerts for major failures.”

“Maintaining the discipline to regularly engage with the user-friendly software is essential for a successful monitoring program. I have found that if I do my due diligence, then I can rely on Mighty Lube to light my path.”— Josh H.

Conclusion

This case highlights the power of visibility. From detecting a hidden, broken trolley to preventing failures through wear monitoring to triggering alerts before catastrophic damage. Mighty Lube’s Conveyor Monitoring enables maintenance teams to act before problems become downtime.
